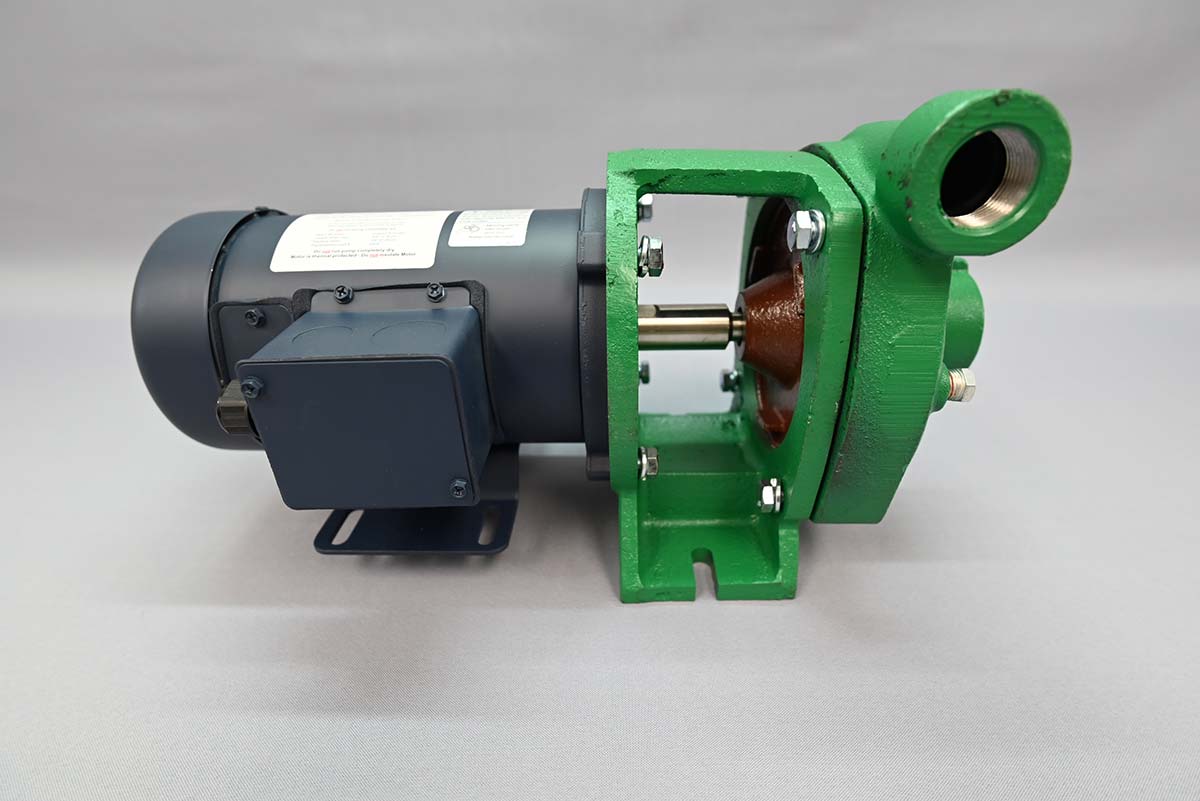

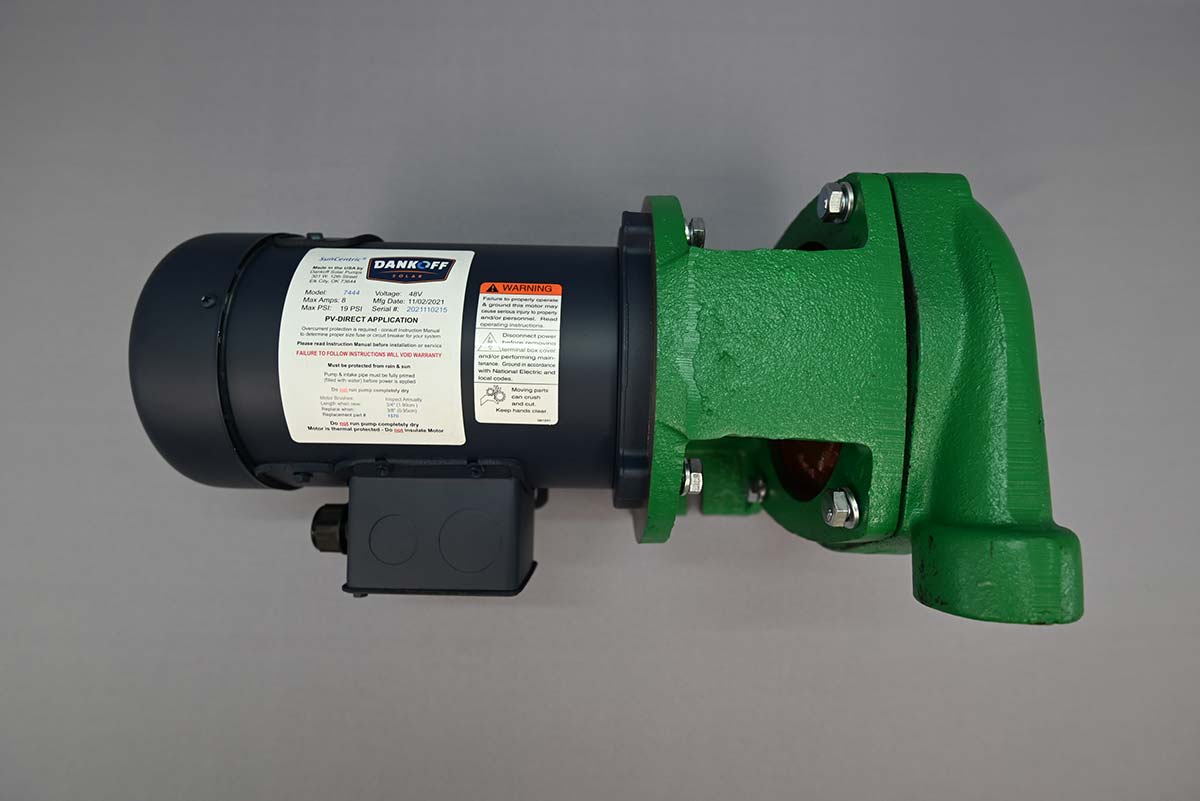

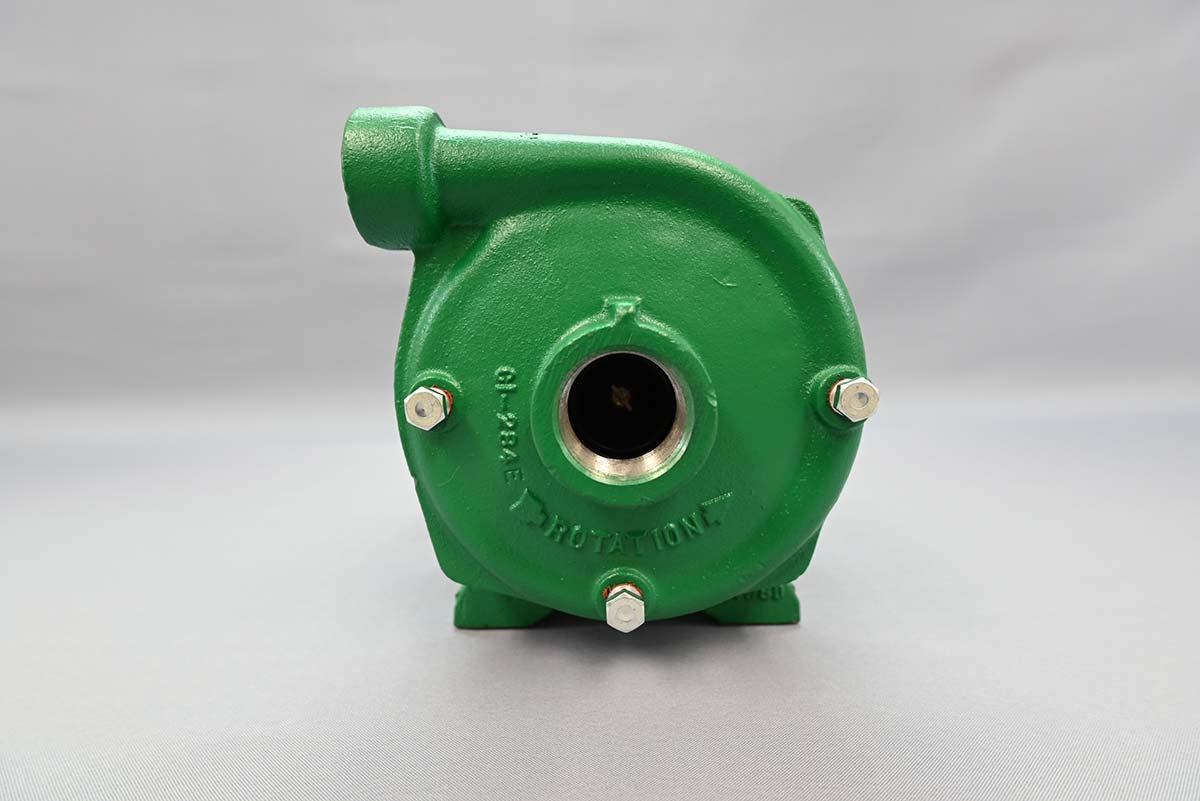

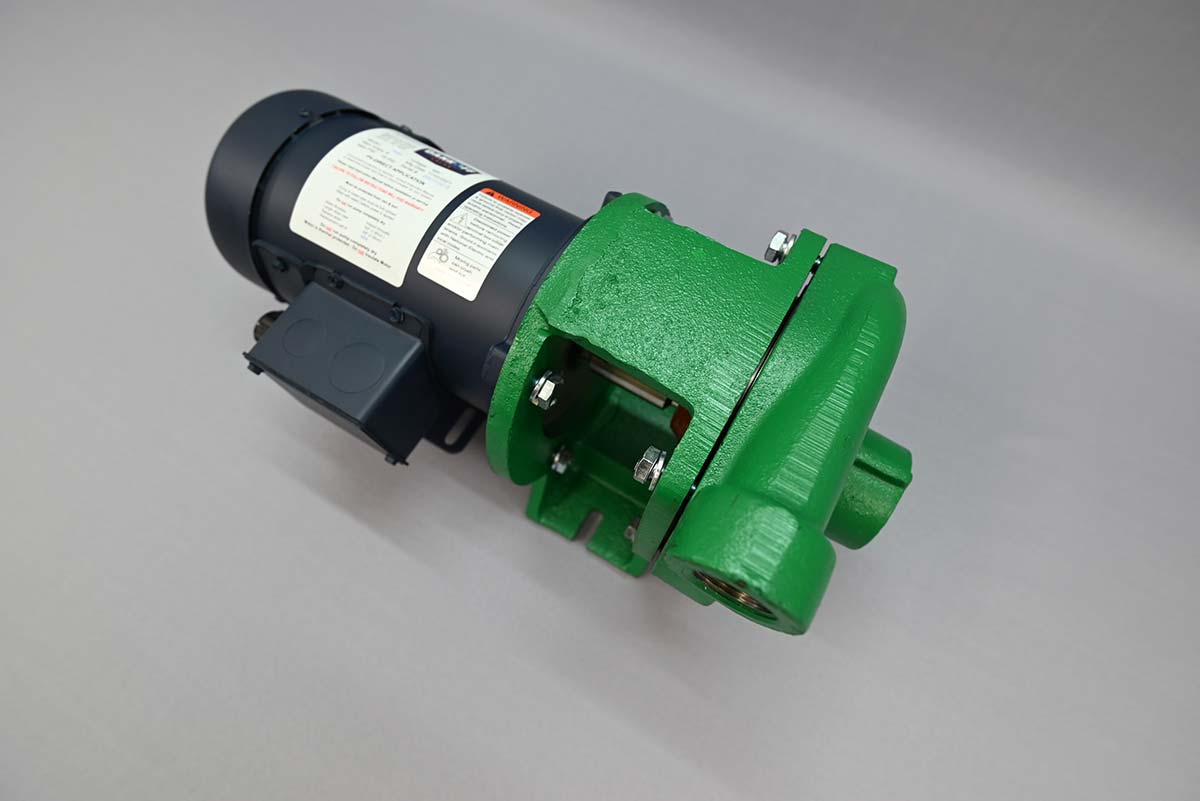

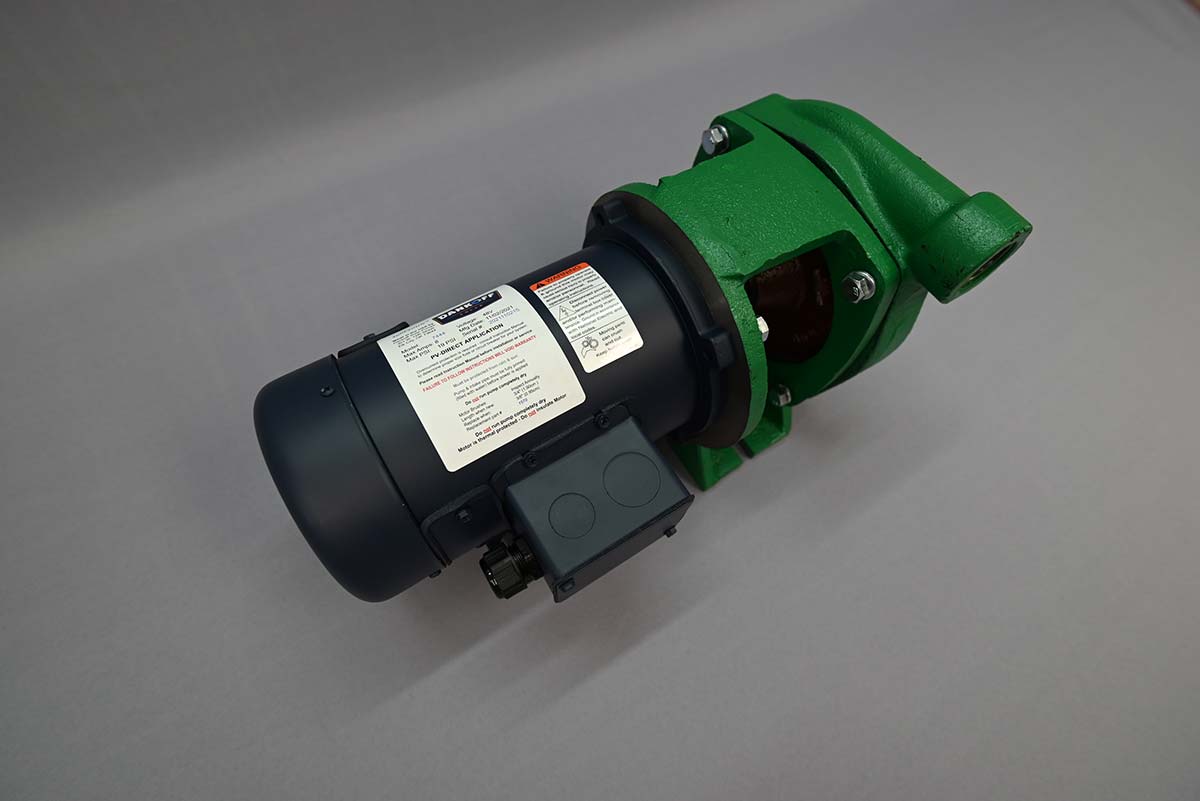

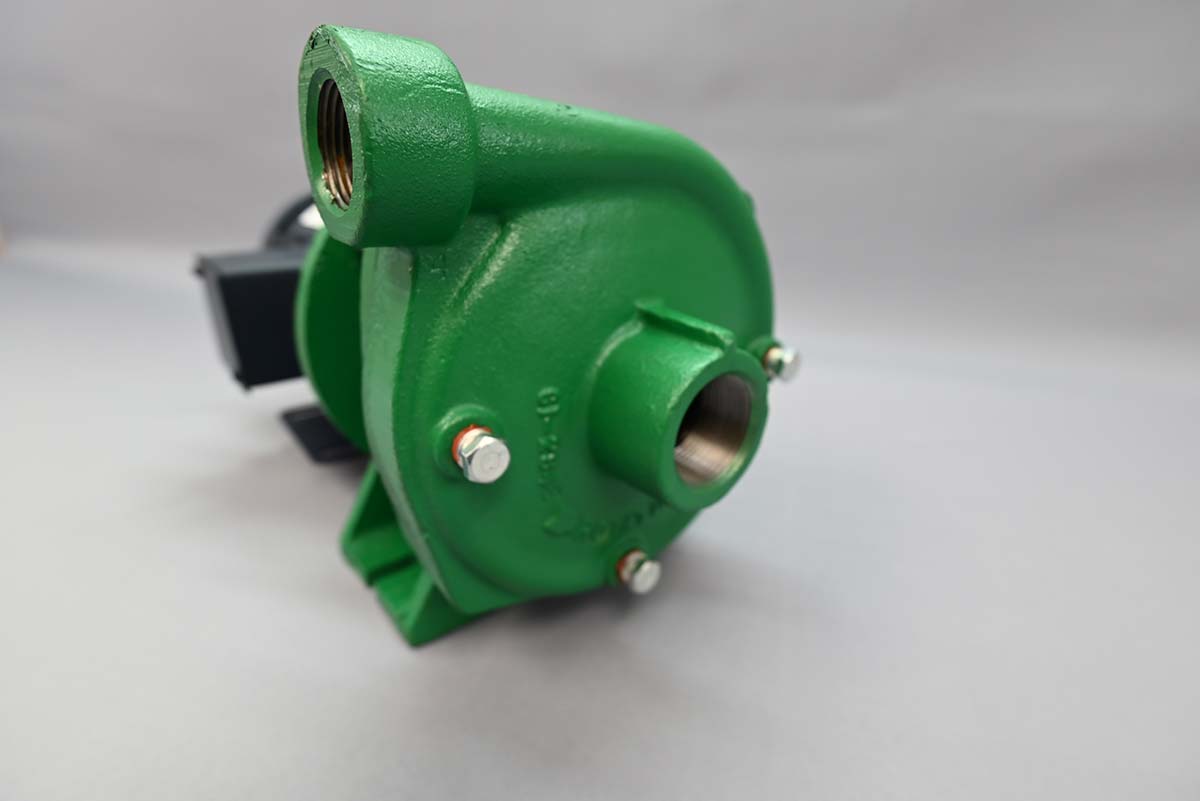

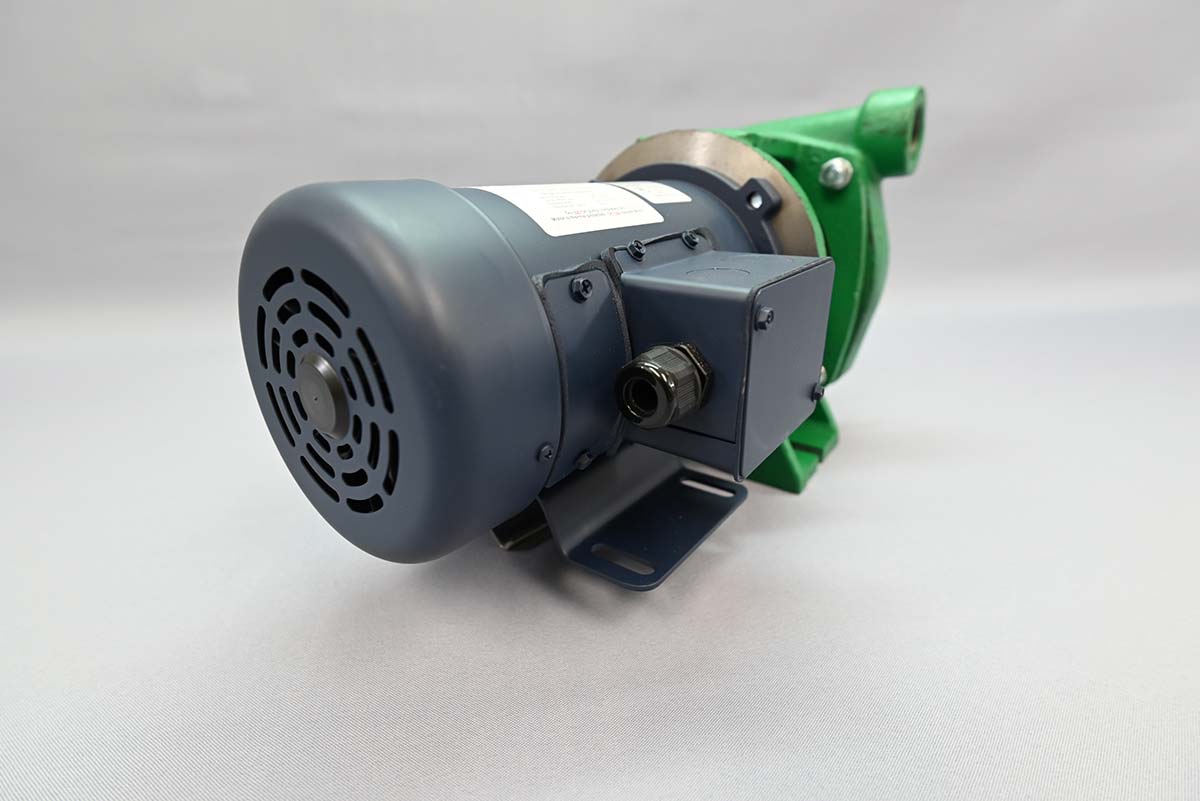

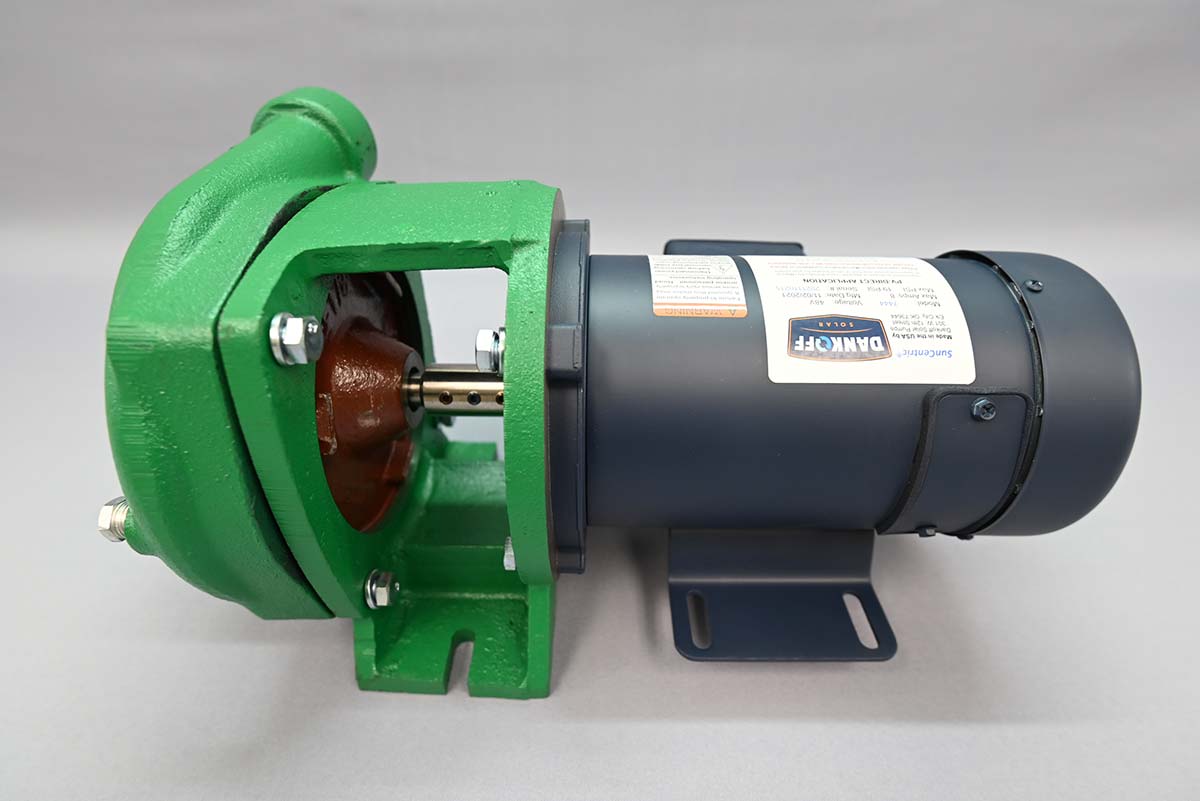

SunCentric Pump
The Dankoff SunCentric uses solar-electric power to pump as much as 50,000 gallons (200 m3) per day from shallow water sources. Applications include irrigation, livestock watering, domestic water supply, pond management, water treatment, solar water heating, hydronic space heating, and fire protection. These pumps have been in worldwide use since 1989 and can be used without batteries, though are most effective when coupled with the Dankoff Controller. Wearable parts are replaceable and typically last 5 to 10 years with an overall life expectancy of 15 to 20 years.
Output: 5 – 70 GPM (19 – 265 LPM)
Total Dynamic Head (TDH): Up to 90 ft. (27m)
Suction Capacity: 10 vertical feet (3m) at sea level. Subtract 1ft. for every 1000ft. altitude (1 m for every 1000 m)
Weight: 49 – 70 lbs (23-32 kg) depending on the model
Notes: Does not require filtration – tolerant of dirt; NOT for pressurized applications; no routine maintenance required
Warranty: 2 years against defects in materials and workmanship
Models & Details
Item | Description | Sales U/M | Lbs. | L” | W” | H” | MSRP |
---|---|---|---|---|---|---|---|
7212 | Dankoff SunCentric Centrifugal Pump 7212 12V PV Direct..Min PV Array 377 Watts: 290 Watts..19.3 Amps / 21.3 Max Amps..32.5gpm @ 5' TDH / 7.5gpm @ 35' TDH 12V Battery 168 Watts, 14 Amps / 15.4 Max Amps..22.5gpm @ 5' TDH / 7.5gpm @ 20' TDH | Each (Each) | 48 | 18 | 12 | 10 | $2,349 |
7213 | Dankoff SunCentric Centrifugal Pump 7213 12V Battery 187 Watts, 15.6 Amps / 17.1 Max Amps..31.0gpm @ 5' TDH / 13.0gpm @ 20' TDH | Each (Each) | 48 | 18 | 12 | 10 | $2,349 |
7214 | Dankoff SunCentric Centrifugal Pump 7214 12V Battery 204 Watts, 17 Amps / 18.7 Max Amps..34.0gpm @ 5' TDH / 7.5gpm @ 25' TDH | Each (Each) | 48 | 18 | 12 | 10 | $2,349 |
7321 | Dankoff SunCentric Centrifugal Pump 7321 24V Battery 168 Watts, 7 Amps / 7.7 Max Amps..22.5gpm @ 5' TDH / 7.5gpm @ 20' TDH | Each (Each) | 51 | 18 | 12 | 10 | $2,499 |
7322 | Dankoff SunCentric Centrifugal Pump 7322 24V PV Direct, Min PV Array 377 Watts: 290 Watts,..9.7 Amps / 10.6 Max Amps..32.5gpm @ 5' TDH / 5.0gpm @ 35' TDH 24V Battery 199 Watts, 8.3 Amps / 9.1 Max Amps..29.0gpm @ 5' TDH / 7.5gpm @ 25' TDH | Each (Each) | 51 | 18 | 12 | 10 | $2,499 |
7323 | Dankoff SunCentric Centrifugal Pump 7323 12V PV Direct, Min PV Array 100 Watts: 77 Watts,..5.1 Amps / 5.6 Max Amps 17.5gpm @ 5' TDH / 7.5gpm@ 10' TDH | Each (Each) | 51 | 18 | 12 | 10 | $2,499 |
7324 | Dankoff SunCentric Centrifugal Pump 7324 12V PV Direct, Min PV Array 117 Watts: 90 Watts,..6 Amps / 6.6 Max Amps 21.0gpm @ 5' TDH / 12.5gpm @ 10' TDH | Each (Each) | 51 | 18 | 12 | 10 | $2,499 |
7325 | Dankoff SunCentric Centrifugal Pump 7325 12V PV Direct, Min PV Array 144 Watts: 111 Watts,..7.4 Amps / 8.1 Max Amps..29.0gpm @ 5' TDH / 16.5gpm @ 10' TDH | Each (Each) | 56 | 18 | 12 | 10 | $2,799 |
7414 | Dankoff SunCentric Centrifugal Pump 7414 12V Battery, 283 Watts 28.6 Amps / 25.9 Max Amps..39.0gpm @ 5' TDH / 17.5gpm @ 25' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,799 |
7415 | Dankoff SunCentric Centrifugal Pump 7415 12V Battery, 283 Watts 28.6 Amps / 25.9 Max Amps..39.0gpm @ 5' TDH / 17.5gpm @ 25' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,899 |
7423 | Dankoff SunCentric Centrifugal Pump 7423 24V PV Direct, Min PV Array 558 Watts: 429 Watts..14.3 Amps / 15.7 Max Amps..46.0gpm @ 10' TDH / 7.5gpm @ 45' TDH 24V Battery, 259 Watts 10.8 Amps / 11.9 Max Amps..39.0gpm @ 5' TDH / 18.0gpm @ 25' TDH | Each (Each) | 56 | 22 | 16 | 14 | $2,549 |
7424 | Dankoff SunCentric Centrifugal Pump 7424 24V PV Direct, Min PV Array 624 Watts: 480 Watts..16.0 Amps / 17.6 Max Amps..52.5gpm@ 5' TDH / 19.0gpm @ 45' TDH 24V Battery 286 Watts 11.9 Amps / 13.1 Max Amps..41.0gpm @ 5' TDH / 14.0gpm @ 30' TDH | Each (Each) | 56 | 22 | 16 | 14 | $2,549 |
7425 | Dankoff SunCentric Centrifugal Pump 7425 24V Battery 346 Watts, 14.4 Amps / 15.9 Max Amps..54.0gpm @ 5' TDH / 17.5gpm @ 30' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,899 |
7426 | Dankoff SunCentric Centrifugal Pump 7426 24V Battery 391 Watts 16.3 Amps / 17.9 Max Amps..55.0gpm @ 5' TDH / 19.0gpm @ 35' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,899 |
7442 | Dankoff SunCentric Centrifugal Pump 7442 36V PV Direct, Min PV Array 205 Watts: 158 Watts..3.5 Amps / 3.9 Max Amps 25.0gpm @ 5' TDH / 9.0gpm @ 20' TDH 48V Battery 182 Watts 3.8 Amps / 4.2 Max Amps..29.0gpm @ 5' TDH / 7.5gpm @ 25' TDH | Each (Each) | 56 | 22 | 16 | 14 | $2,499 |
7443 | Dankoff SunCentric Centrifugal Pump 7443 36V PV Direct, Min PV Array 229 Watts: 176 Watts..3.9 Amps / 4.3 Max Amps 32.5gpm @ 5' TDH / 12.5gpm@ 20' TDH 48V PV Direct, Min PV Array 558 Watts: 429 Watts..7.2 Amps / 7.9 Max Amps 46.0gpm @ 10' TDH /7.5gp... | Each (Each) | 56 | 22 | 16 | 14 | $2,499 |
7444 | Dankoff SunCentric Centrifugal Pump 7444 48V PV Direct, Min PV Array 624 Watts: 480 Watts..8 Amps / 8.8 Max Amps 52.5gpm@ 5' TDH / 19.0gpm @ 45' TDH | Each (Each) | 56 | 22 | 16 | 14 | $2,499 |
7445 | Dankoff SunCentric Centrifugal Pump 7445 24V PV Direct, Min PV Array 144 Watts: 111 Watts..3.7 Amps / 4.1 Max Amps 29.0gpm @ 5' TDH / 16.5gpm @ 10' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,799 |
7446 | Dankoff SunCentric Centrifugal Pump 7446 36V PV Direct, Min PV Array 404 Watts: 311 Watts..6.9 Amps / 7.6 Max Amps 50.0gpm @ 5' TDH / 7.5gpm @ 30' TDH 48V Battery, 374 Watts 7.8 Amps / 8.6 Max Amps..54.0gpm @ 5' TDH / 17.5gpm @ 30' TDH | Each (Each) | 61 | 22 | 16 | 14 | $2,799 |
7511 | Dankoff SunCentric Centrifugal Pump 7511 24V Battery: 650 Watts 27.1 Amps / 29.8 Max Amps..36gpm @ 5' TDH / 7.5gpm @ 80' TDH | Each (Each) | 63 | 22 | 16 | 14 | $2,649 |
7521 | Dankoff SunCentric Centrifugal Pump 7521 36V PV Direct, Min PV Array 959 Watts: 738 Watts..16.4 Amps / 18 Max Amps 37.5gpm @ 5' TDH / 7.5gpm @ 80' TDH 24V Battery: 648 Watts, 13.5 Amps / 14.9 Max Amps..36gpm @ 5' TDH / 7.5gpm @ 80' TDH | Each (Each) | 63 | 22 | 16 | 14 | $2,599 |
7526 | Dankoff SunCentric Centrifugal Pump 7526 24V PV Direct, Min PV Array 952 Watts: 732 Watts..24.4 Amps / 26.8 Max Amps 70gpm @ 5' TDH / 9gpm @ 60' TDH | Each (Each) | 68 | 22 | 16 | 14 | $2,899 |
7622 | Dankoff SunCentric Centrifugal Pump 7622 36V PV Direct, Min PV Array 1,112 Watts: 855 Watts..19 Amps / 20.9 Max Amps 50gpm @ 10' TDH / 10gpm @ 85' TDH 48V Battery: 974 Watts, 20.3 Amps / 22.3 Max Amps..52gpm @ 10' TDH / 16gpm @ 90' TDH | Each (Each) | 68 | 22 | 16 | 14 | $2,899 |
7623 | Dankoff SunCentric Centrifugal Pump 7623 36V PV Direct, Min PV Array 1,416 Watts: 1,089 Watts..24.2 Amps / 26.6 Max Amps, 56gpm @ 10' TDH / 10gpm @ 90' TDH | Each (Each) | 68 | 22 | 16 | 14 | $2,899 |
